Membrane Aerated Biological Filter & In Lake

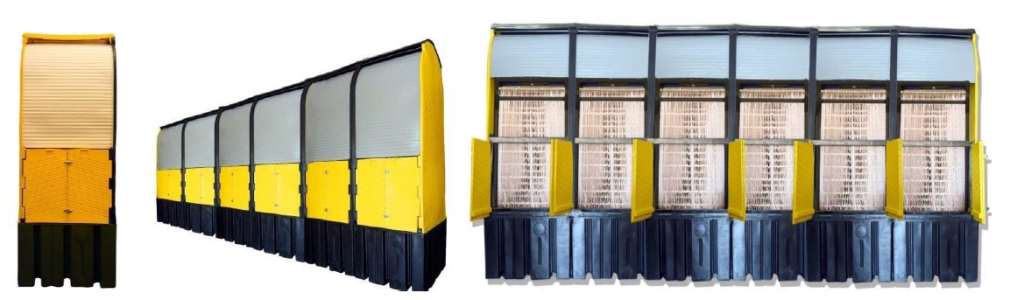

Decentralised Sewage & Industrial Wastewater Treatment and Sewage Polluted Lake Water Treatment.
Above ground biohut biofilters turbo charge nutrient removal in wastewater and Lake
Water Science Nature
Biohut biofilters are the perfect habitat for microbes without the need for additional aeration systems.

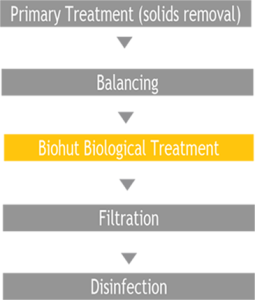

The technology can easily increase the efficiency and durability of a wastewater treatment process, at low cost and low energy. Ideal for treating both low & high BOD/COD wastewater, Biohut technology is based on a key premise of concentrating and maximising microbiology. The result is a biological treatment process for wastewater treatment that is highly effective at reducing BOD, COD and nitrogen, at low cost and low energy. With primary treatment upstream to remove solids, biohut biofilters are ideal for the biological secondary stage of the wastewater treatment scheme

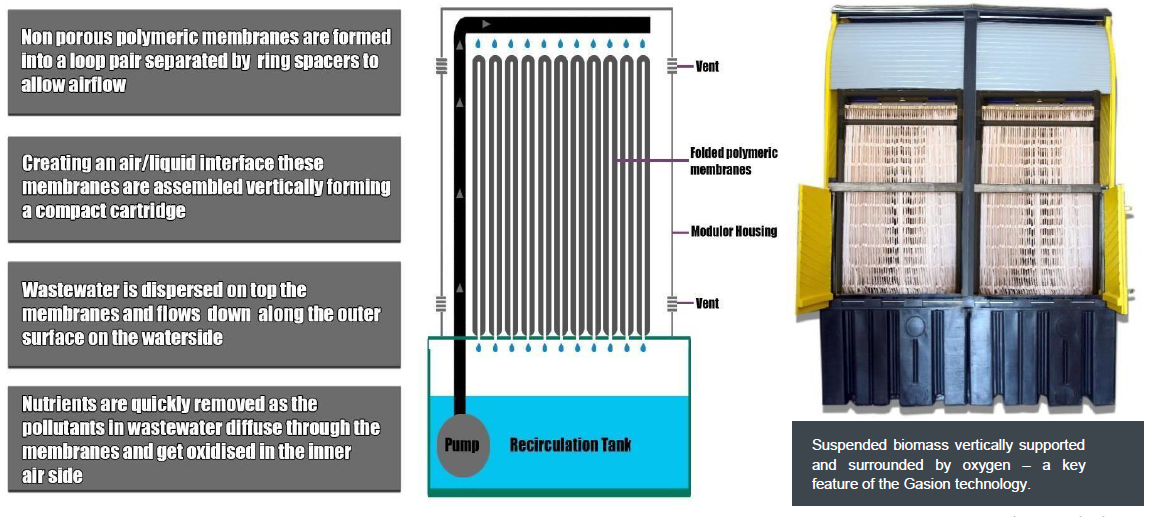

How Biohut Works

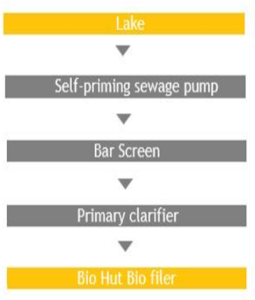

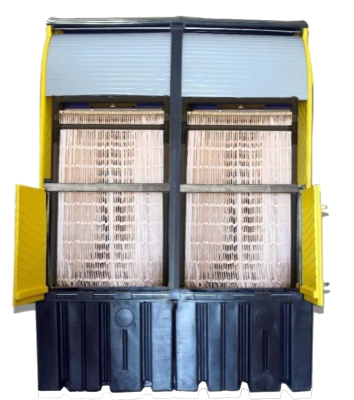

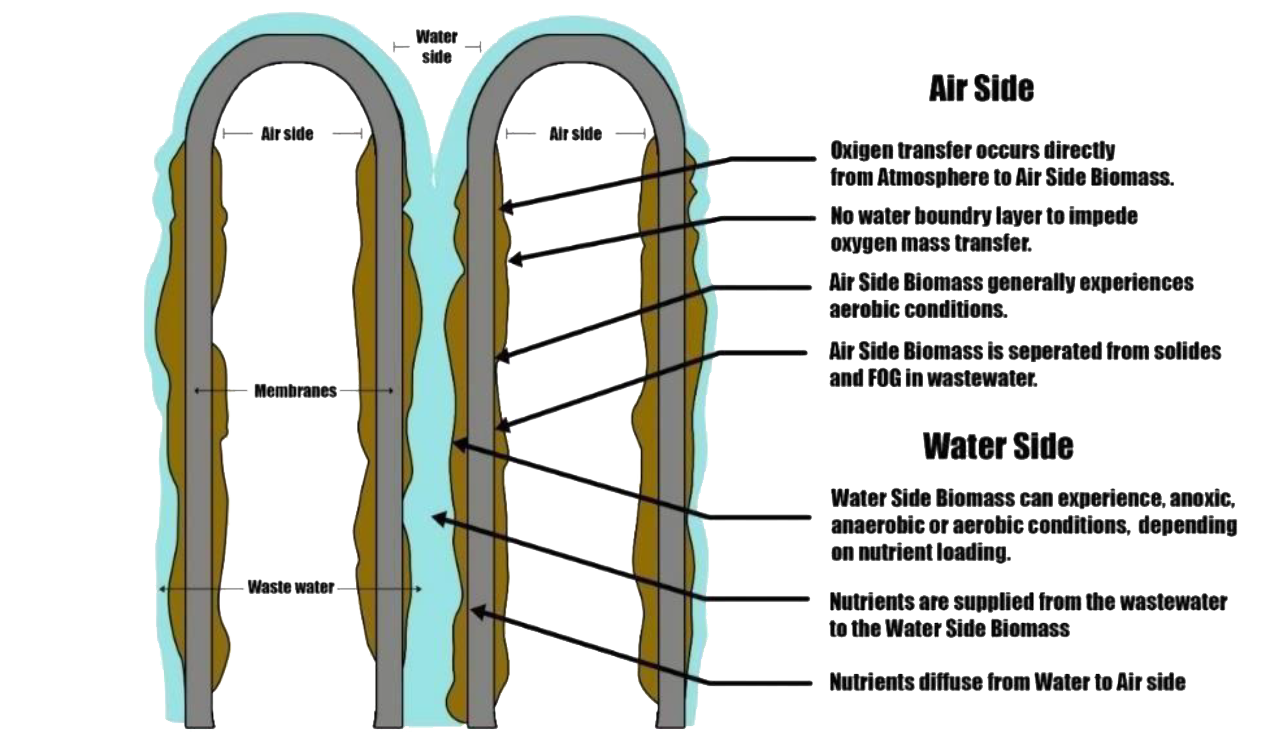

At the technology’s core is a uniquely designed Polymeric membrane that the lake water is circulated into the Biohut system with bar screen and Spiral Clarifier as pretreatment and trapping large suspended solids provides the ideal support media to grow a thick and healthy treating biomass. As the biomass on the membrane is suspended, with one side receiving the high nutrient waste stream and the other an abundant air supply, growth and metabolic performance is maximized. The patented Biohut membranes are arranged in multiple, suspended vertical loops with water delivered to the top of each loop. Lake water flows down the surface of the gills where the metabolic activity of the bacteria generates a convective air flow, moving upward in the air side between each set of loops. No blowers or aerators are used to provide oxygen for the biomass. Compared with other aerobic water treatment processes, the Biohut bio filter offers more efficient, above ground aeration of organic material in the waste stream. Biohut membranes can achieve biomass density as high as 50,000 mg/L or better. This loading of microorganisms, Nature’s best recyclers, turbo charges nutrients removal from lake water like nitrogen, Phosphates and soluble BOD/COD.
Waste Water Teartment

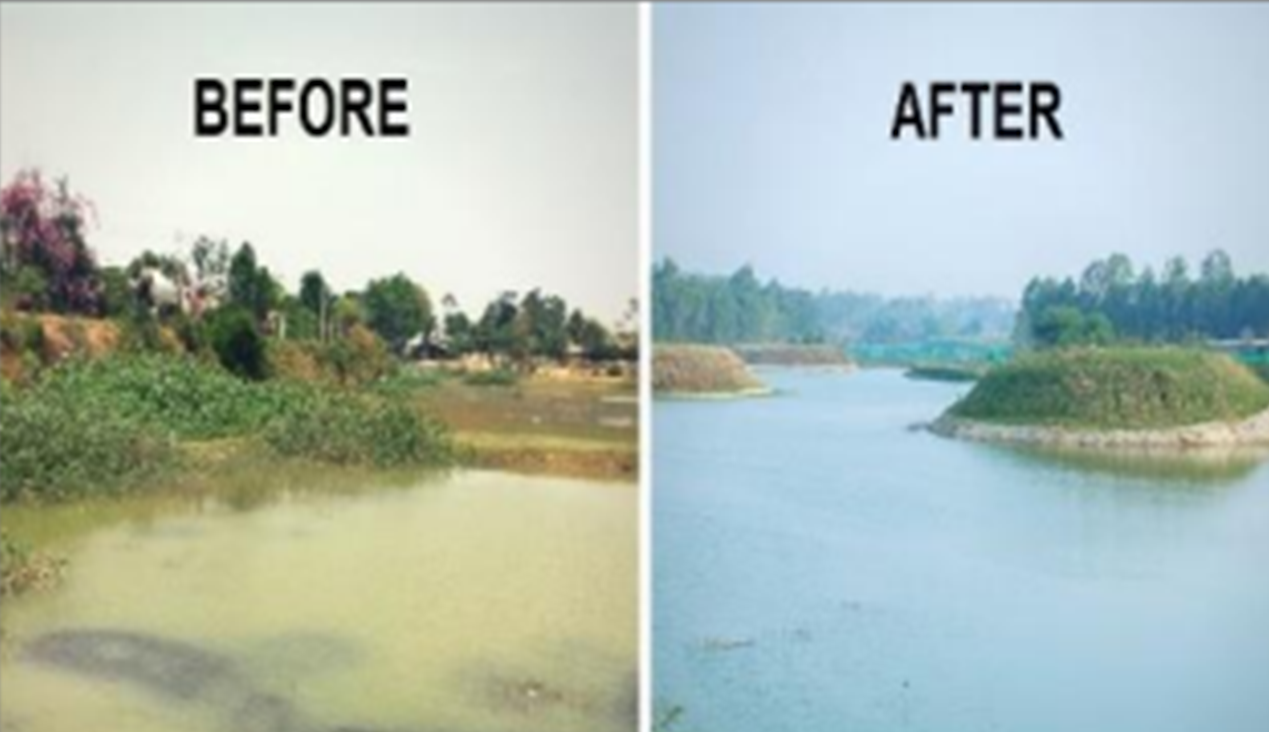

Lake Water Treatment

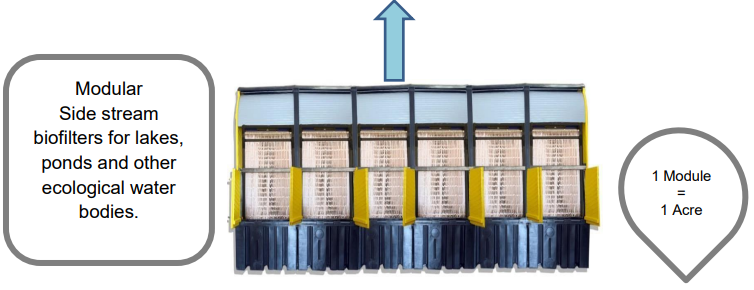

Biohut biofilters in lake are ideal for the aerobic biological stage of treating wastewater. Expected treatment results include:
* BOD Nitrogen and phosphate reduction up to 98%
* Lower Energy consumption
The technology has numerous advantages including:
