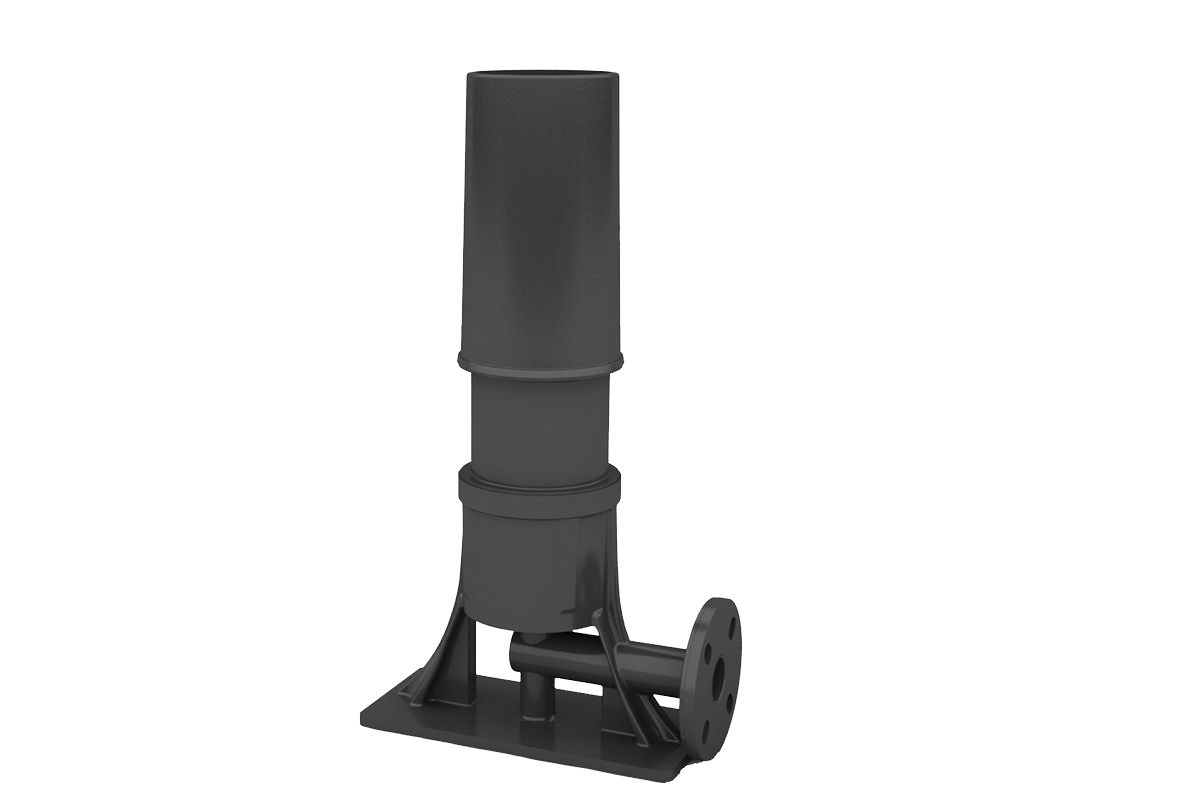

Hydrodynamic Fine Bubble Diffusers Aeration for Wastewater Treatment

Hydrodynamic Diffusers

Fine Bubble Diffusers

Gasion aerators provides microbubble generating diffusers for the wastewater aeration market

Fine Bubble Diffusers

Fine Bubble Diffusers

Fine Bubble Diffusers

Welcome to Gasion Airtec Pvt. Ltd, where we specialize in providing top-quality fine bubble diffusers for aeration and oxygenation needs. Our fine bubble diffusers are designed to deliver exceptional performance and efficiency in various applications, including wastewater treatment plants, aquaculture systems, and industrial processes.

What sets our Fine Bubble Diffusers apart is their innovative design, engineered to produce a high volume of small bubbles that maximize the surface area for oxygen transfer. This results in superior oxygenation of water bodies, promoting the growth of beneficial microorganisms and enhancing overall water quality.

Why Are Fine Bubble Diffusers Important ?

Efficient Oxygen Transfer: Fine bubble diffusers create a large surface area for oxygen transfer into water. This increased surface area allows for more efficient oxygenation of water bodies, which is crucial for the survival of aquatic organisms and the overall health of aquatic ecosystems.

Water Quality Improvement: Adequate oxygen levels in water are essential for maintaining water quality. Fine bubble diffusers help improve water quality by increasing dissolved oxygen levels, which can prevent the buildup of harmful pollutants, reduce odors, and promote the growth of beneficial bacteria that aid in the decomposition of organic matter.

Wastewater Treatment: In wastewater treatment plants, fine bubble diffusers play a vital role in the aeration process. By aerating wastewater, these diffusers facilitate the growth of aerobic bacteria that break down organic pollutants, making the water safer to discharge into the environment or reuse for irrigation purposes.

Construction and Operation

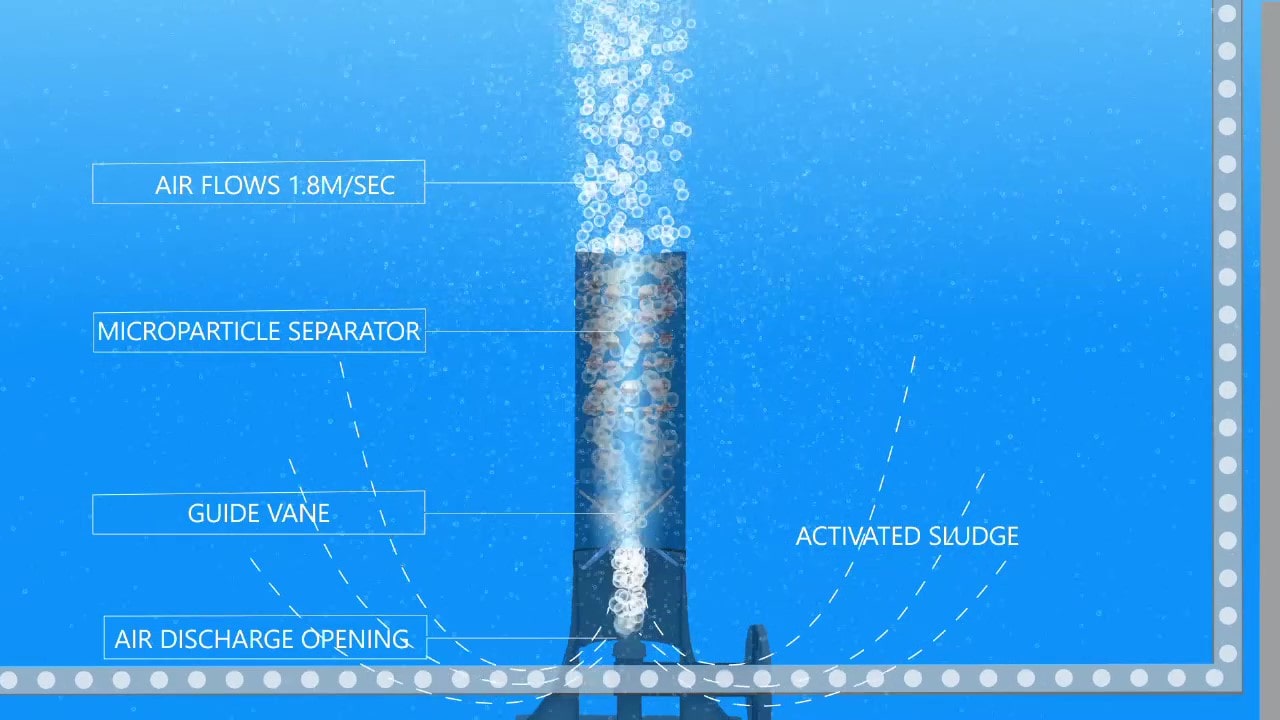

The Gasion hydrodynamic mixers are constructed of engineering plastics and can be used as high volume air diffusers. Compressed air enters at the bottom of the diffuser assembly through an ejector device creating vacuum which draws in large amount of water through the aerator body. The water and air mixture gets mixed thoroughly in a vane type arrangement and then the air is fractured into micro bubbles in a set of mushroom type bubble breaker device which forcibly dissolve oxygen into water. Circulating flows are formed by powerful upward air flows which evenly churn the entire tank resulting in high agitation and oxygen transfer. Volume of activated sludge sucked into the aerator is about 1.3 times than the air supplied because of strong negative pressure created in the ejector assembly.Air discharge opening is about 30mm and so operated without any clogging issues even in liquid with large particles.
Wastewater Plant

Construction and Operation of Fine Bubble Diffusers In India

Comparison of Gasion Aerator & Fine Pore Diffusers

Gasion Aerator Substitutes fine pore diffuser more effectively

Technical comparison proves the superiority of hydrodynamic aerators more durable, more efficient and easy installation
GASION AERATOR FINE PORE DIFFUSERS
LARGE AIR OPENING (About 30 mm ) BASIC STRUCTURE FINE AIR OPENING ( Few hundred microns )
SPIRAL FLOW MIXING MECHANISM LAMINAR FLOW WITHOUT MIXING
MICRO SIZED BUBBLES BUBBLE SIZE MILLIMETER SIZED BUBBLES
1.0 SAME OTR IN CLEAN AND WASTEWATER ALPHA VALUE APPROX 0.4 TO 0.6 ONLY ABOUT 50% OTR IN WASTEWATER
NEVER CLOGGING FREQUENT - NEEDS SHUT DOWN , CHEMICAL CLEANING
CONSTANT EFFICIENCY DECREASES ON OPERATION
> 20 YEARS PRODUCT LIFE LESS THAN 2 YEARS
FEW DIFFUSERS PER UNIT AREA….ONE TENTH COMPARED TO CONVENTIONAL DIFFUSER QUANTITY MANY DIFFUSERS PER UNIT AREA
CAN OPERATE AT HIGH MLSS ( ABOUT 50000 TO 60000 MG/LIT ) ACTIVATED SLUDGE CLOGS FREQUENTLY IN MLSS ABOVE 5000 MG/LIT
NO DRAINING OF TANKS ALSO INSTALLED AND ACCESSED FROM TOP INSTALLATION TANK TO BE EMPTIED FOR INSTALLATION AND ACCESSED ONLY AT FLOOR
NO ANCHORING - AIR FORCE PRESSES THE DIFFUSER FIXING STRONG AND MANY ANCHORING TO FLOOR NEEDED

Micro Bubble Diffuser

Size of the bubbles can drastically influence the oxygen transfer efficiency in the aeration system.

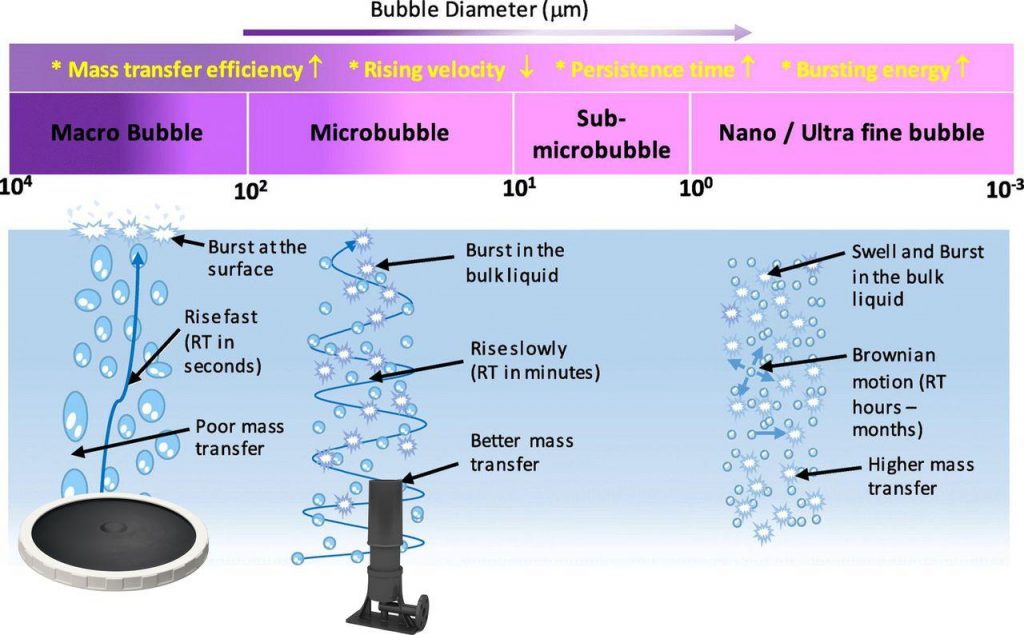

Gasion hydrodynamic aerators produce millions of bubbles in micron sizes which have much larger surface area, compared to millimetre bubbles of diffused aerators. The size is so minute that it cannot travel up to the surface in a straight path. The very low buoyancy of the micro bubbles creates zig-zag path of bubbles moving horizontally more than the vertical distance. This increases the residence time of these bubbles in liquid drastically. The figure illustrates and compares the air bubble size and rising phenomenon of millimetre and micron sized bubbles. It could be noted that millimetre sized bubbles travel up and burst outside on the surface. But the Gasion micron sized bubbles burst inside the liquid itself as it takes much longer before it reaches the top. This bubble burst in liquid accounts for very high OTR of the Gasion Aerators.
Industry water treatment

Micro Bubble Diffuser / Nano Bubble Diffuser

Wastewater treatment plant

Multiple Parts of Fine Bubble Diffusers

Multiple Parts

Multiple precision parts make an efficient aerator assembly

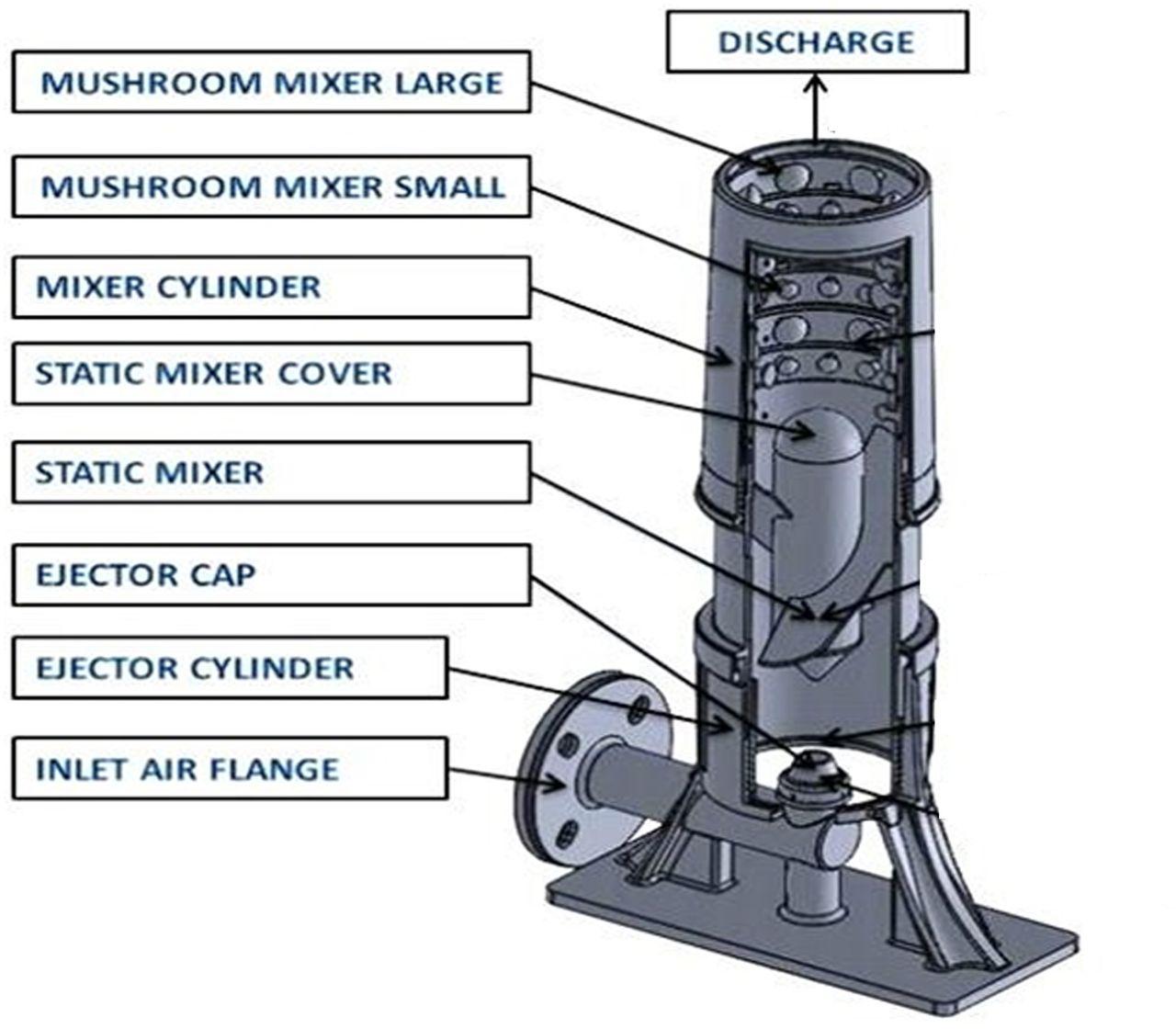

Gasion hydrodynamic aerators are constructed of multiple injected moulded parts assembled together to form an high performance aerator. Each of the part is carefully designed, connected aligned to provide a durable structure which should last many years.Supplied as an unit which can be readily used in the aeration tanks.

Constant OTR

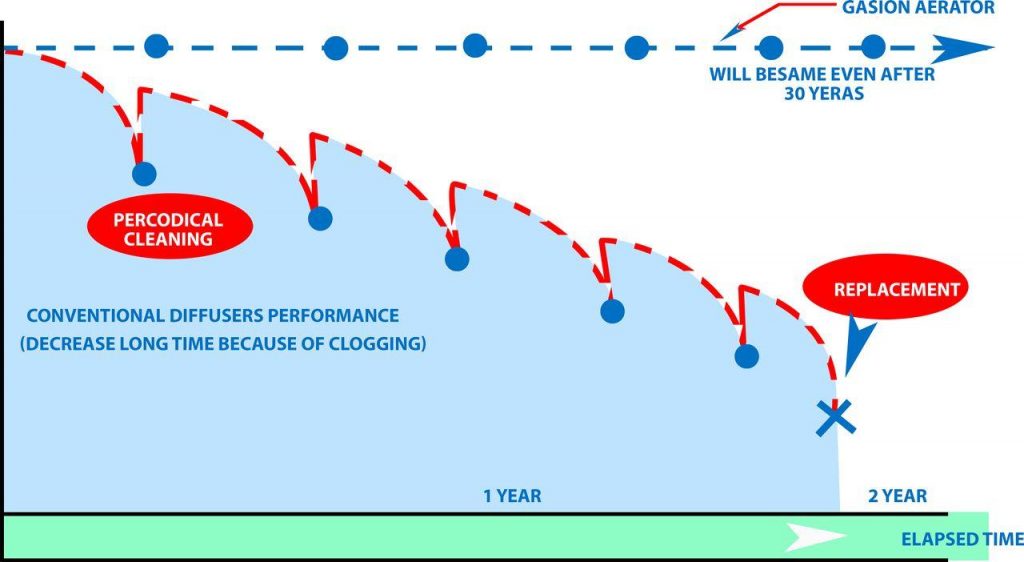

Conventional rubber diffusers slowly decreases in OTR as it clogs and need periodical cleaning and downtimes. It needs complete replacement in less than 2 years in most cases.
Gasion hydrodynamic aerator OTR remains the same through out its lifetime .
Wastewater treatment plant

Constant OTR - Fine Bubble Diffuser Performance

Wastewater treatment

Air Flow - Fine Bubble Diffusers

Air Flow

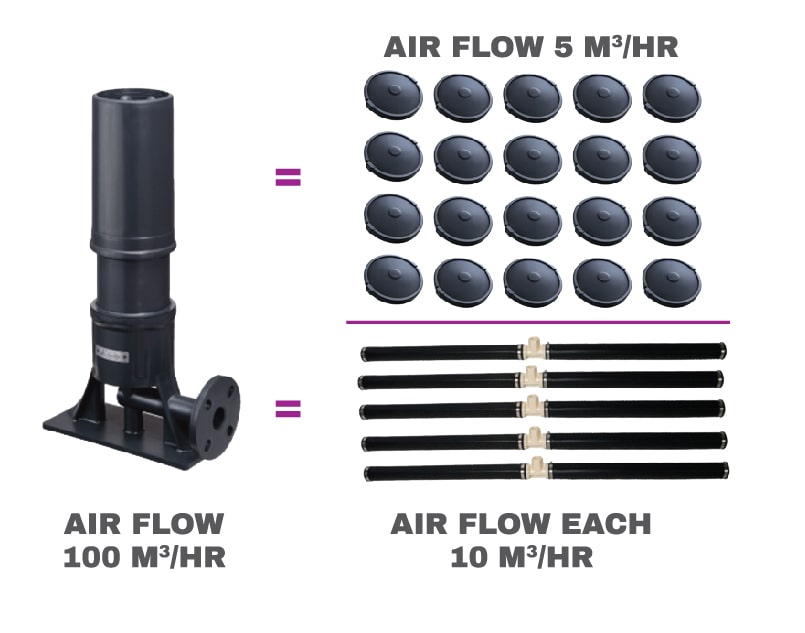

Gasion hydronamic diffusers have an air flow rate capabilities of more than 100 cum/hr per unit against 10 cum /hr of tube diffusers and 5 cum/hr of disc diffusers. One Gasion diffuser can replace 10 tube diffuser or 20 disc diffuser which reduces piping complications for Air grid drastically.
