ODOX CONTROL
Odour control in sewage pump stations & other industries
Odour Control System
Odour is a major concern in sewage wet wells, pump stations, treatment plants and many industries like chemical processing, fish processing, dairy and other animal farms, food industries etc. Normal activated carbon filters gets saturated quickly and not effective for gases like hydrogen sulphide. Many systems corrode in few months. A simple, effective and modular odour control system is the need of an hour. Gasion introduces ODOX, a five stage odour control system designed for municipal, and all industrial and commercial requirements.

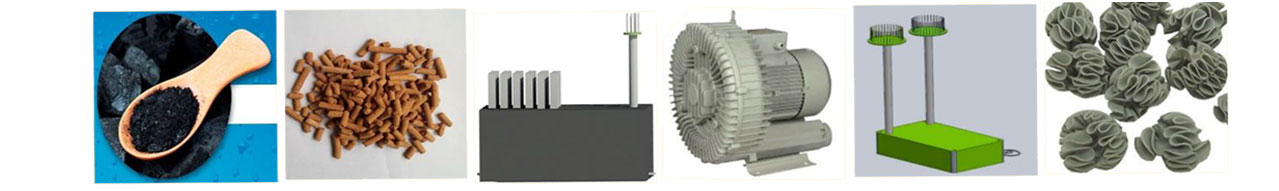

Accessories

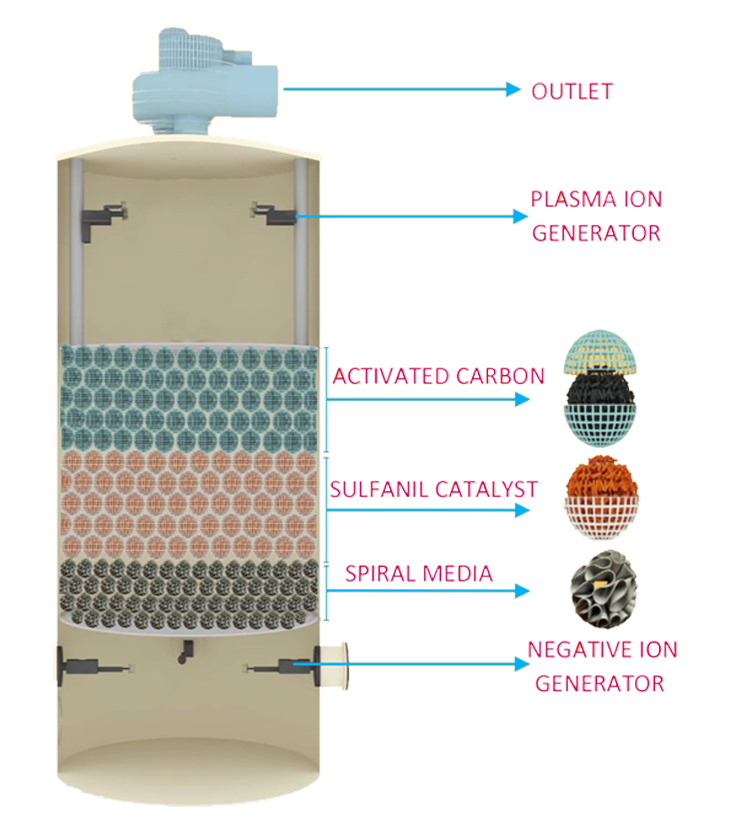

Working Principle
* The contaminated gases enters to the negative ions generator which makes the dust particles in the gases to agglomerate and settle at the bottom.
* The partially clean gas travel up to the spiral media where the remaining dust particles get attached to the media.
* In this catalytic reaction stage the impregnated iron in the catalyst reacts with H2S converting them to FeS thus eliminating majority of all the odour causing substance.
* In activated carbon layer the remaining odorous elements like methane and other organics are adsorbed into the porous carbon surfaces.
* In the plasma ion generator the gases are exposed to both positive and negative ions simultaneously, which neutralizes all the trace organic, mercaptons etc.,
* This drastically eliminates all the pollutants and the clean dust and odour free gases exit the system through a polymeric centrifugal blower
Process
Gasion ODOX 5 Stage odour Control system with
- Negative ion generator
- Spiral media filtration
- Sulfanil catalyst
- Activated carbon filtration
- Plasma ionization
Advantages
- Economical treatment of larger volumes of odourous gas
- No pre-filters – Filterless dust removal
- Low operating cost.
- High removal efficiency – Five stage treatment.
- Non corrosive construction
- No chemical requirements
- Low power consumption
- Stable under large load variations
- Compact-Requires little space.
Odour Control Solutions - Odour control system for Sewage treatment plant
The High-performance odour control system is a set of technologies is designed to eliminate unpleasant smell from commercial or industrial process.Odor control unit is the ideal solutions for wastewater treatment plants, food processing plants, chemical factories and any environment where odours can be strong and hazardous.
Odor Control in wastewater treatment : Common sources of Odour Control Wastewater Treatment Plants and strategies to control them include:
- Headworks
- Primary treatment
- Sludge handling
- Lift station
- Biological treatment.
FAQ
1. Why pump station generate odor?
Pump station odor control systems are designed to reduce unpleasant smells that arise during wastewater collection and pumping. These odours, typically caused by hydrogen sulfide and other gases, can be a nuisance to nearby residents and harmful to infrastructure.
2. We need to install Odor Control Unit for lift station?
Gasion’s odor control unit comes with the right technology to eliminate hazardous gases comes from lift stations like hydrogen sulphide,methane,ammonia,carbon dioxide and nitrogen compounds.
3. What are the advantages of Sewage Lagoon Odor Control?
Key Benefits of sewage treatment plant odour control includes:
- Improved air quality
- Enhance System performance
- Cost savings
- Easy Maintanance
- Environmental Protection
